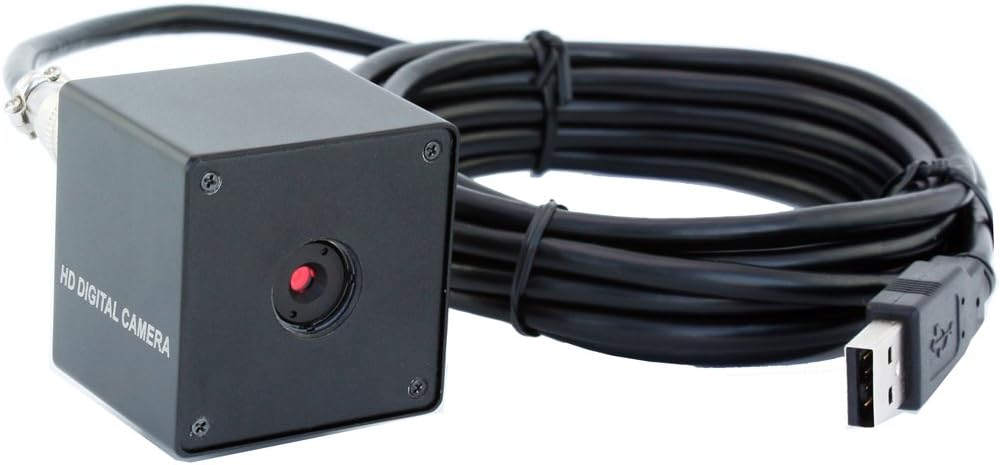

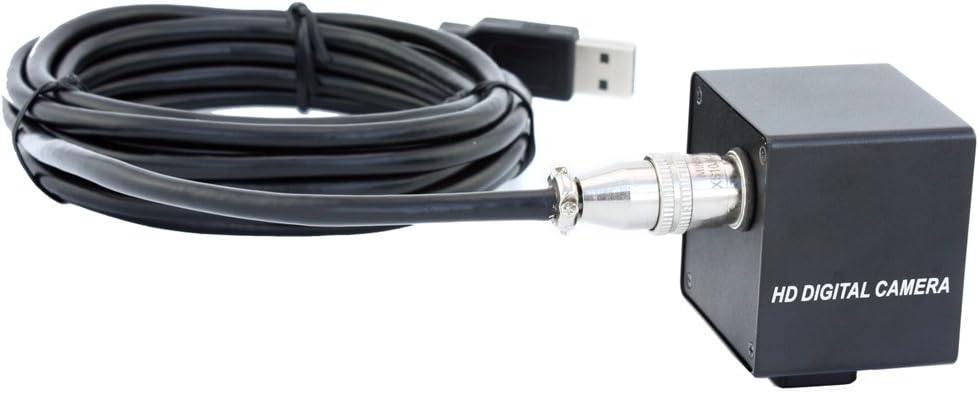

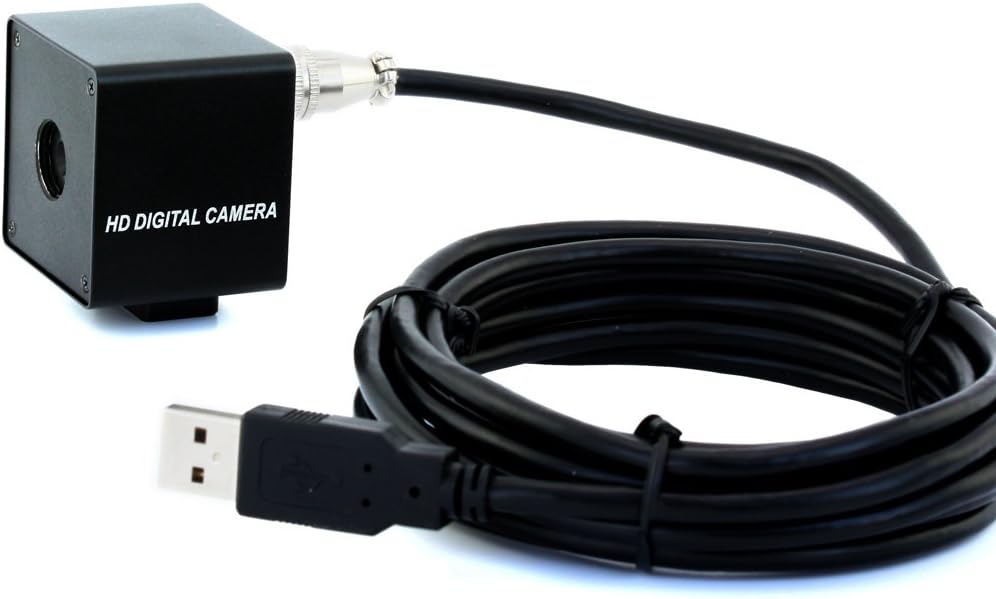

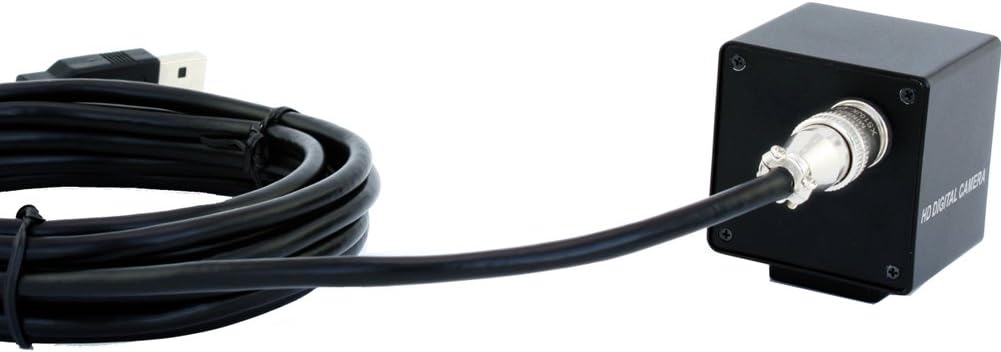

2megapixel Autofocus USB Camera Module with Housing Q6669
2megapixel Autofocus USB Camera Module with Housing Q6669
Compact industrial camera series with USB 2.0
High quality black housing and color CMOS sensors
Autofocus lens up to diagonal 100 degree
2megapixel 1920X1080P HD resolution
compact industrial camera solution for any PC with USB ports
The ELP-USBFHD03AF-BA100 USB Camera module is a fully featured compact single-board camera with housing
perfectly targeted for space and cost sensitive OEM applications. A superior image quality in combination
with a very high frame rate make the camera ideally suited for embedded applications.
Specification:
Autofocus 2MP USB Camera,Sensor 1/2.7' CMOS OV2710
Resolution 1920X1080
Picture format MJPEG or YUY2 optional/USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Performance:
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)
Support OS 'WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above'
What's special about ELP USB2.0 industrial camera?
1)Small, Versatile, cost effective: ELP USB 2.0 cameras come in compact, competitively priced packages in housed
2)Rich features. On-camera power, AEC AEB support.
