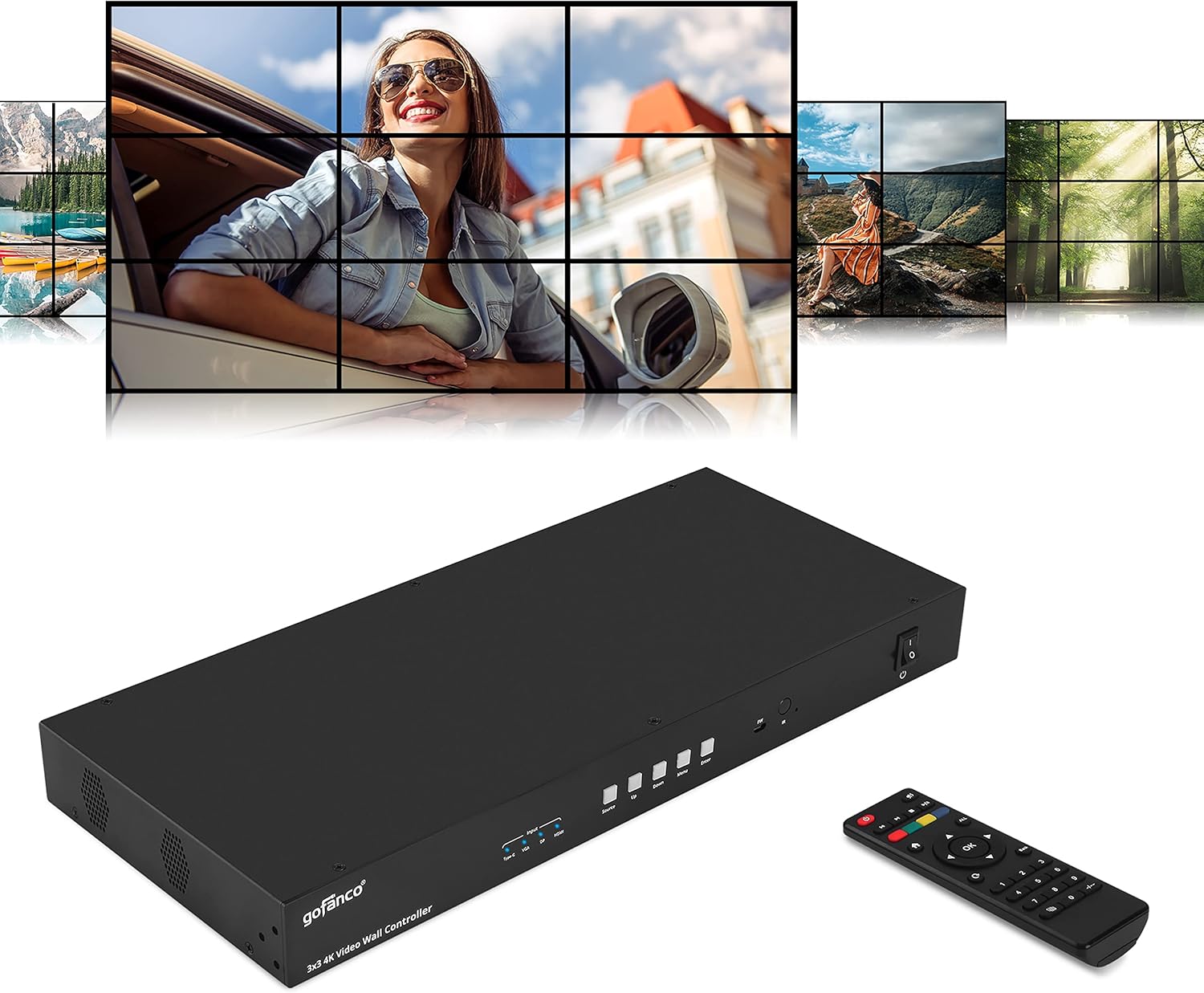

Video Wall Controller and Processor with 4K 30Hz, HDMI, USB-C, DP, VGA, 25 Display Modes G93084
Sale price
$37.99
Regular price $124.63
Skip to product information
NINE-SCREEN PROCESSING – Create a 3x3 video wall from one of the 4 switchable sources: Type-C, VGA, DisplayPort, or HDMI. Supports up to 4K @30Hz from all inputs. 2 default EDID options: 4K @30Hz and 1080p
VIDEOWALL MODES – Supports 25 modes: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 1x7, 1x8, 1x9, 2x1, 3x1, 4x1, 5x1, 6x1, 7x1, 8x1, 9x1, 2x2, 2x2 rotation, 2x3, 2x4, 3x2, 3x3, 3x3 rotation, 4x2. Cascading up to a 10x10 video wall
ADVANCED FEATURES – Supports 180º image rotation, edge correction, HDMI loopout, 1U rack mountable, SPDIF Coaxial and Analog audio extraction, up 5.1-channel audio (HDMI input), firmware upgradable
CONTROL METHODS – 1) Panel buttons, 2) IR remote, 3) RS-232, and 4) Web GUI control. *Note: Remote batteries (AAA) are required but not included for safety reasons
FIVE STAR CUSTOMER SUPPORT: Surface mountable 1U metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select 'Ask a Question'
Video Wall Controller and Processor with 4K 30Hz, HDMI, USB-C, DP, VGA, 25 Display Modes G93084
Sale price
$37.99
Regular price $124.63
Shipping calculated at checkout.

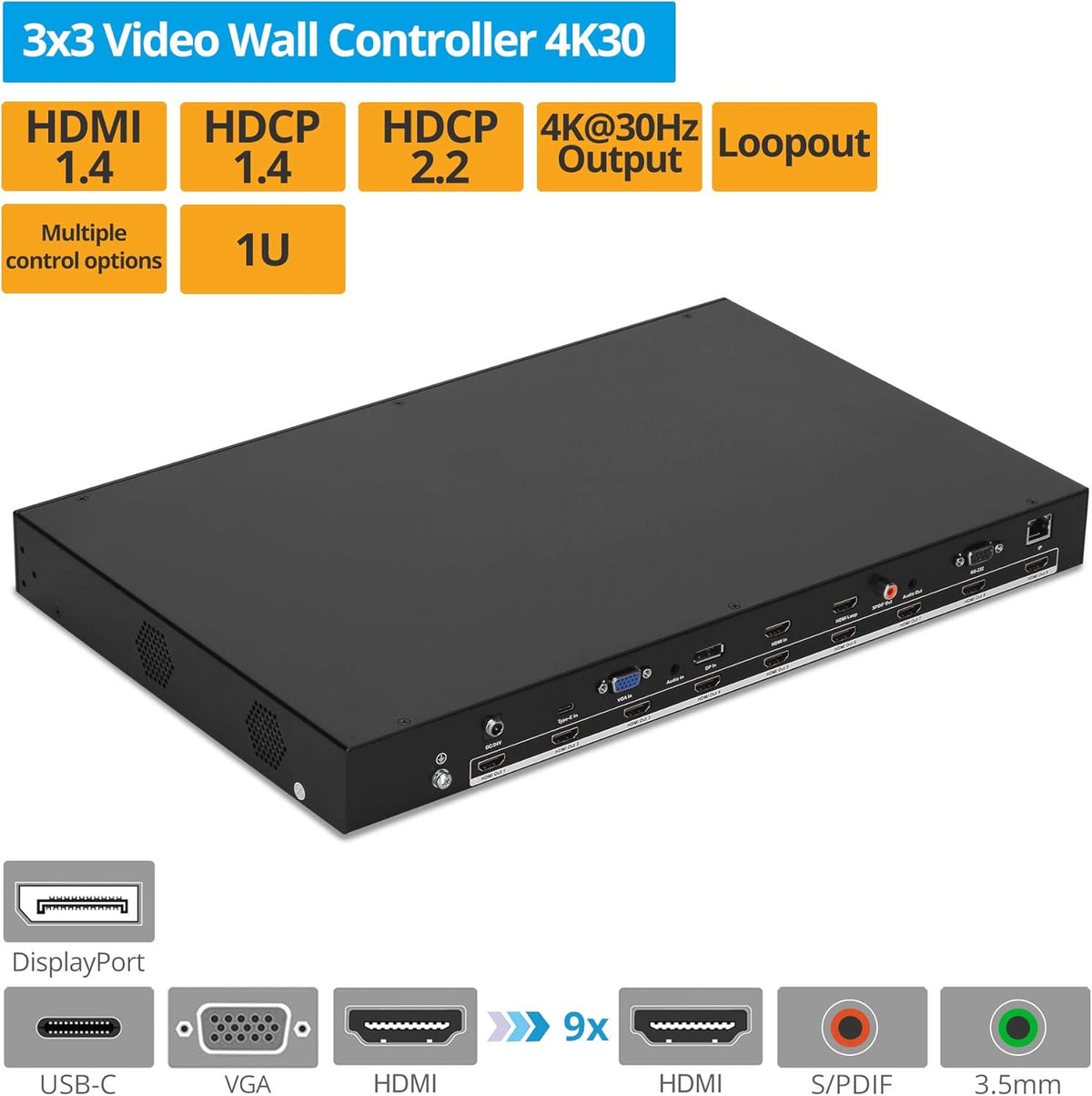

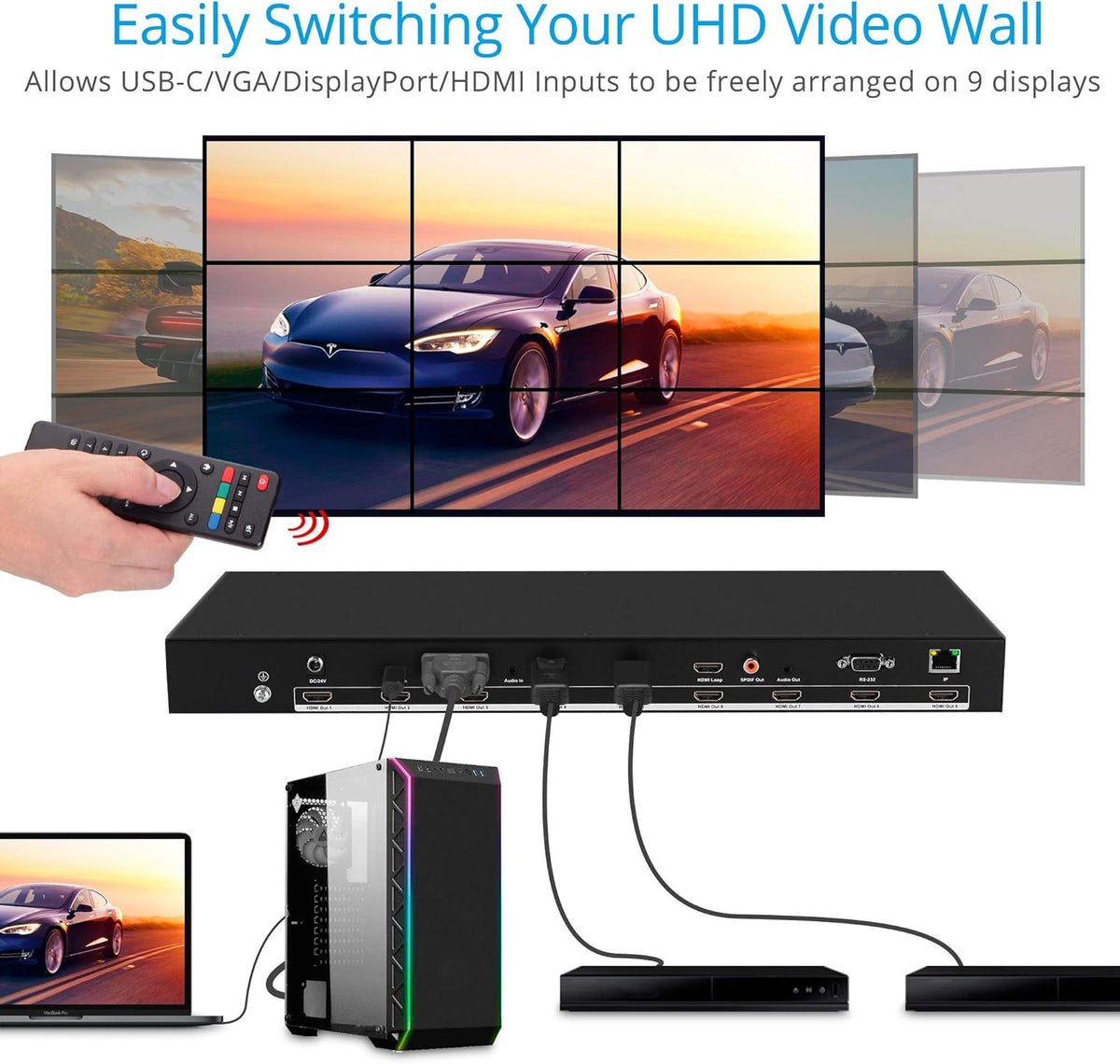

NINE-SCREEN PROCESSING – Create a 3x3 video wall from one of the 4 switchable sources: Type-C, VGA, DisplayPort, or HDMI. Supports up to 4K @30Hz from all inputs. 2 default EDID options: 4K @30Hz and 1080p

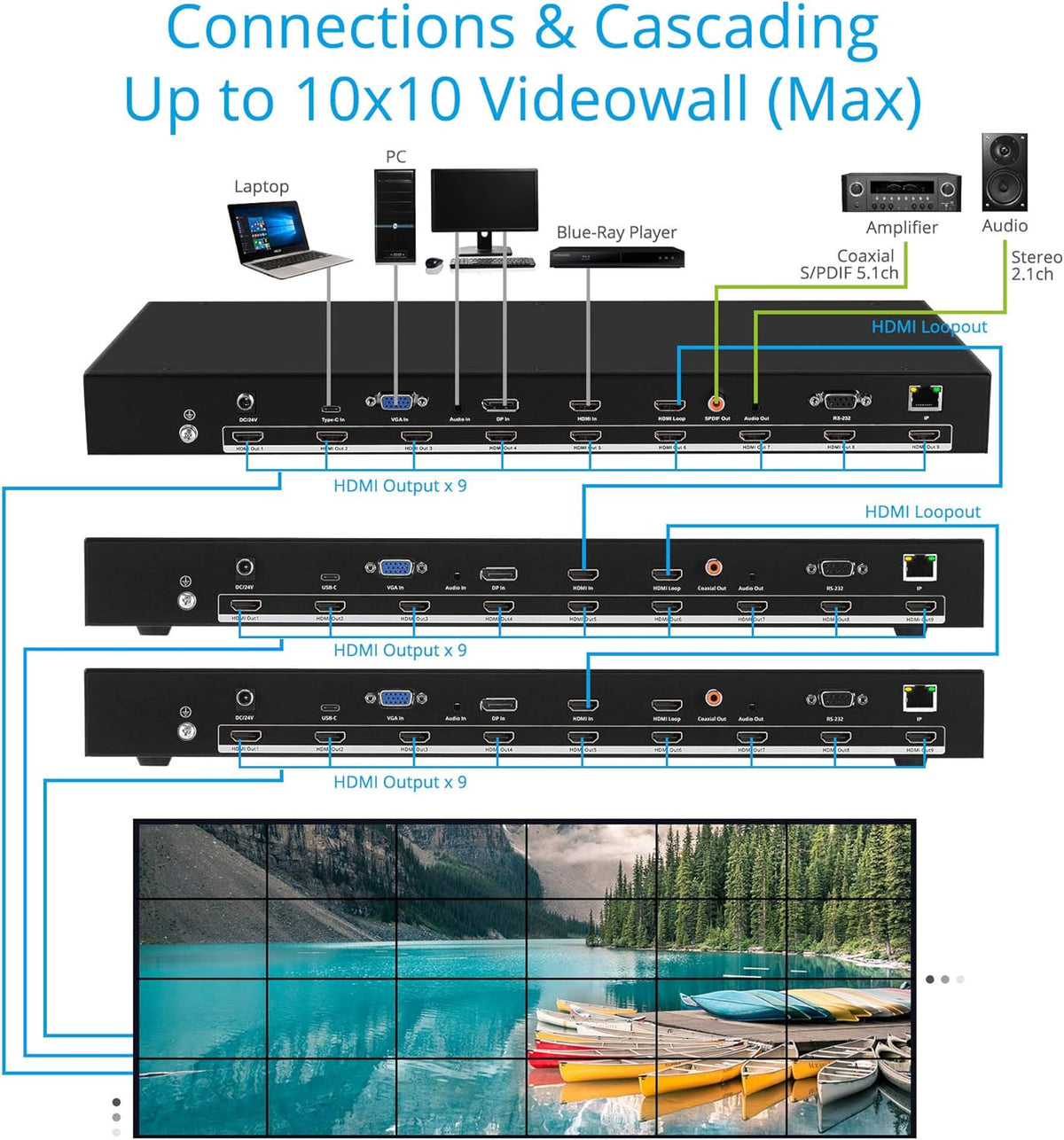

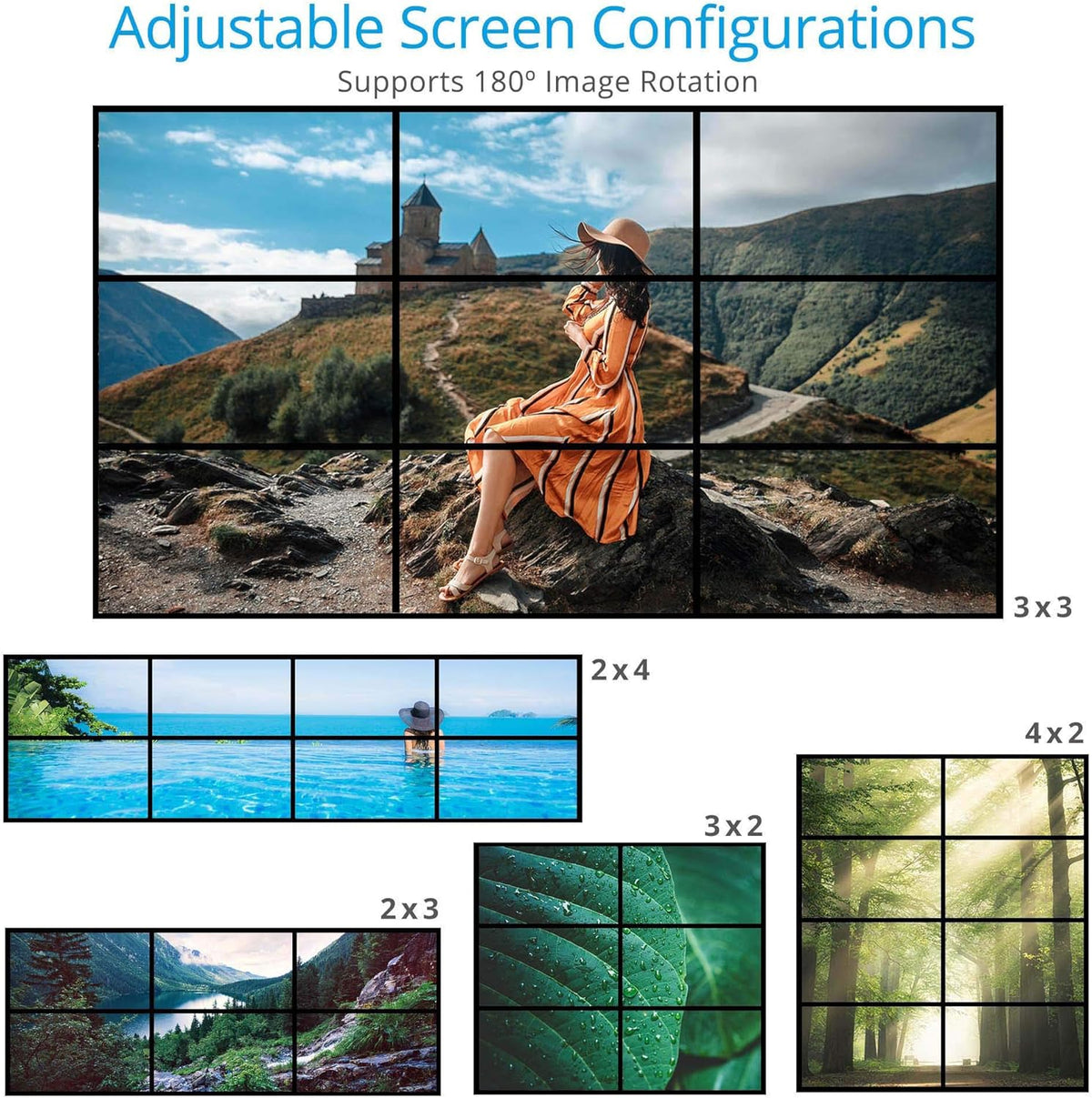

VIDEOWALL MODES – Supports 25 modes: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 1x7, 1x8, 1x9, 2x1, 3x1, 4x1, 5x1, 6x1, 7x1, 8x1, 9x1, 2x2, 2x2 rotation, 2x3, 2x4, 3x2, 3x3, 3x3 rotation, 4x2. Cascading up to a 10x10 video wall

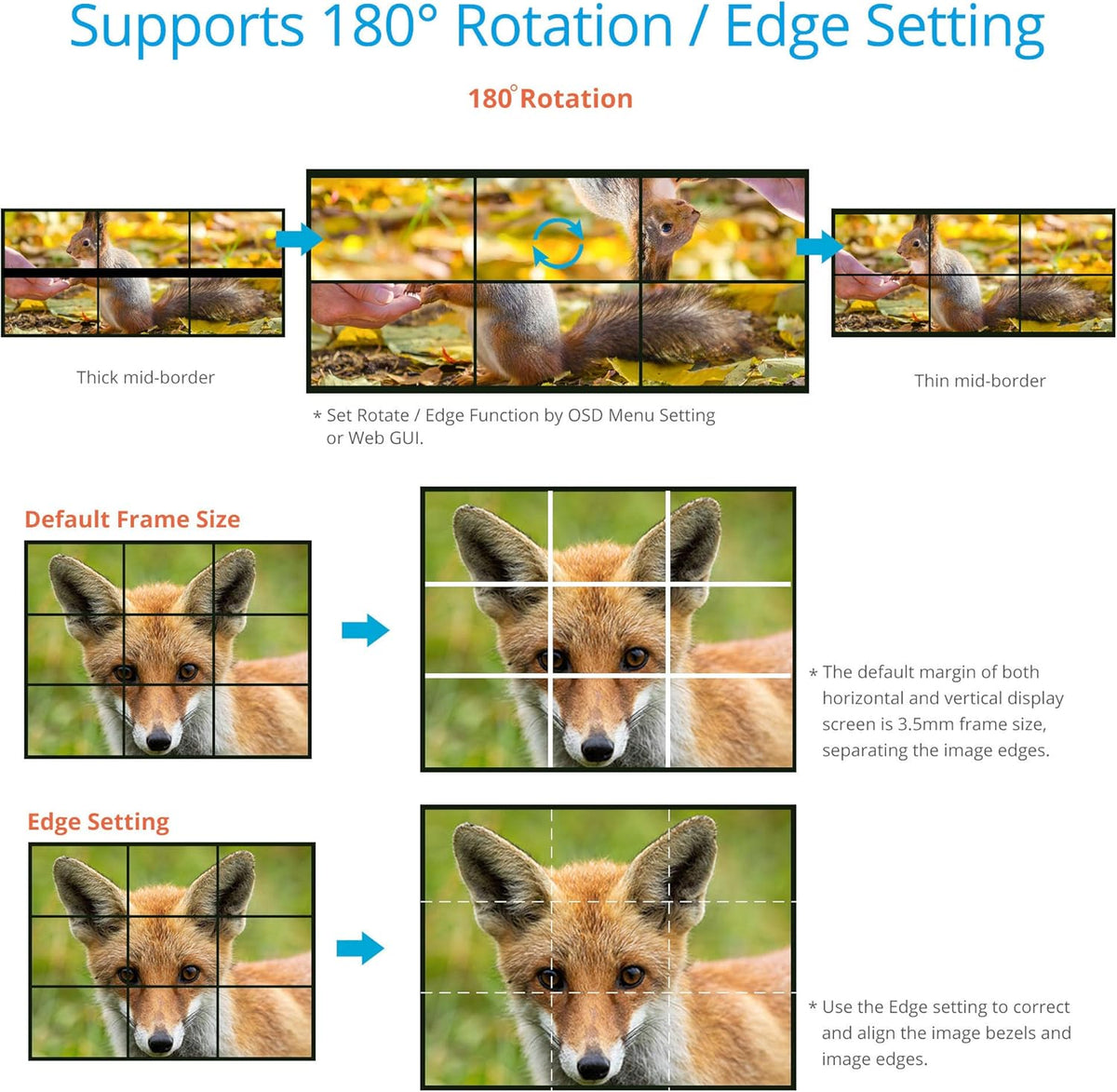

ADVANCED FEATURES – Supports 180º image rotation, edge correction, HDMI loopout, 1U rack mountable, SPDIF Coaxial and Analog audio extraction, up 5.1-channel audio (HDMI input), firmware upgradable

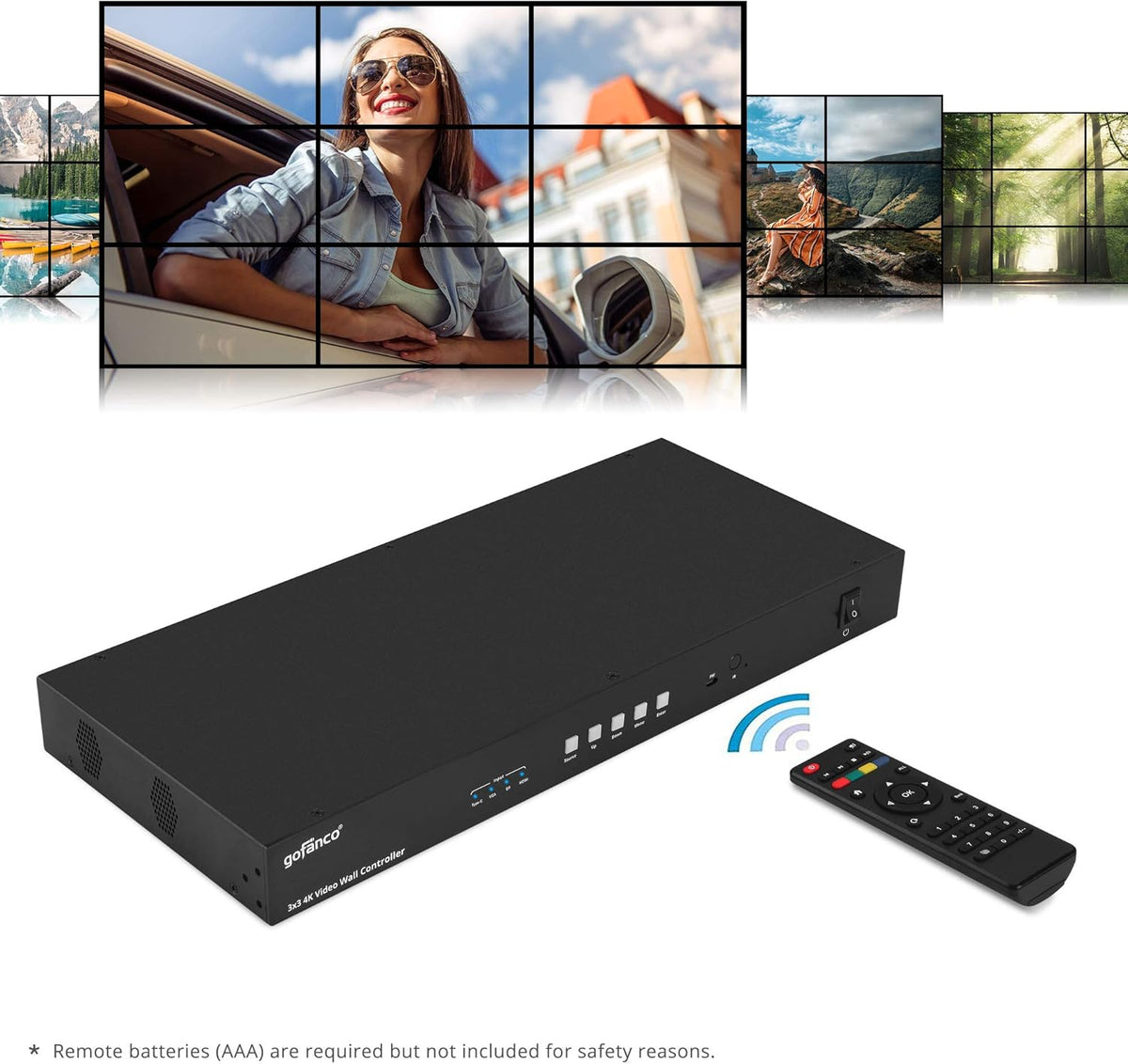

CONTROL METHODS – 1) Panel buttons, 2) IR remote, 3) RS-232, and 4) Web GUI control. *Note: Remote batteries (AAA) are required but not included for safety reasons
FIVE STAR CUSTOMER SUPPORT: Surface mountable 1U metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select 'Ask a Question'
| PRO-VideoWall | Videowall22 | Videowall33 | |
|---|---|---|---|
| Video Input | HDMI/Mini DisplayPort | USB-C/DVI-D/DisplayPort/HDMI | USB-C/VGA/HDMI 1/HDMI 2 |
| Video Output | HDMI (4) | HDMI (4) | HDMI (9) |
| Max Resolution Output | 1920x1200 @ 60Hz | 4K @ 30Hz * | 4K @ 30Hz * |
| Screen Configurations | 2x2, 1x3, 3x1, 1x4, 4x1 (Cascade up to 10x10) | 2x2, 1x3, 3x1, 1x4, 4x1 (Cascade up to 10x10) | 3x3, 2x2, 1x3, 3x1, 1x4, 4x1, 2x4, 4x2, 2x3, 3x2 (Cascade up to 10x10) |
| Control Methods | Panel Buttons / IR Remote Control / Ethernet / Cloud Software | Panel Buttons / IR Remote Control / RS-232 / Web GUI | Panel Buttons / IR Remote Control / RS-232 / Web GUI |
| Audio Extraction | S/PDIF & 3.5mm | S/PDIF & 3.5mm | |
| 180 Degree Screen Rotation | |||
| Edge Correction | |||
| Preset and Manual Modes | |||
| Supports Cascading |
